Digital I/O Extender

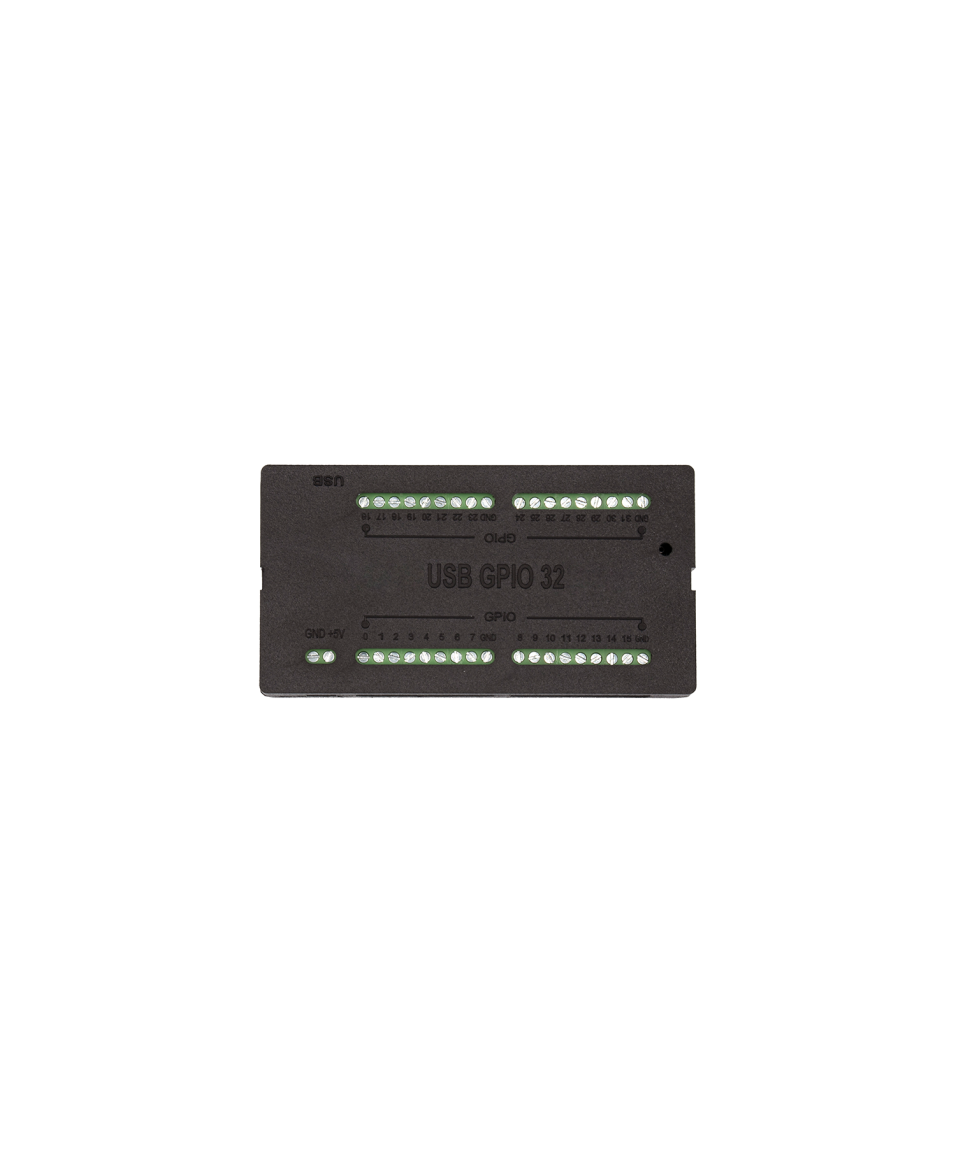

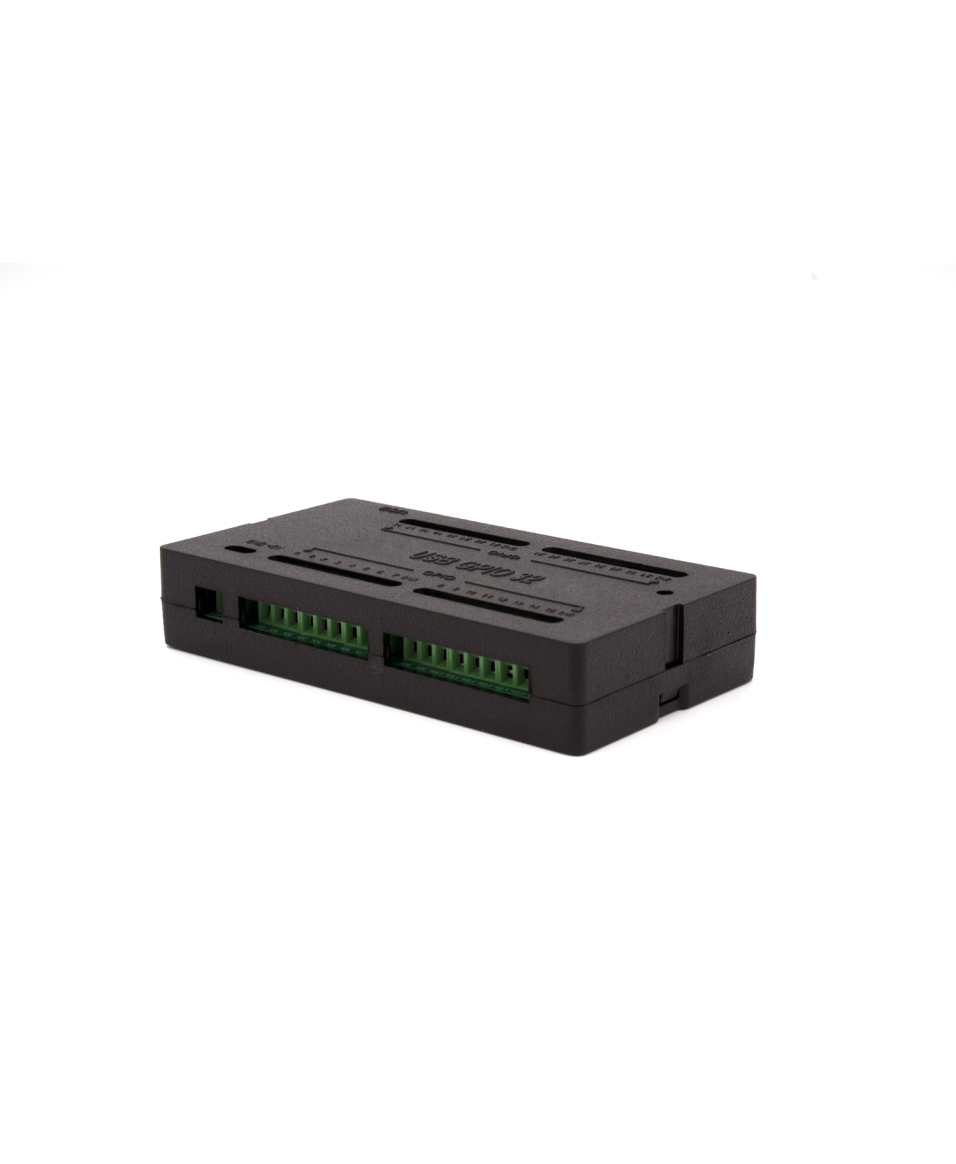

The Digital I/O Extender is an expansion module designed for SMSEagle NXS and MHD devices. It extends the system’s digital input and output capabilities by providing 32 additional configurable digital I/O ports.

By eliminating the native I/O limitations of the SMSEagle unit, the extender enables scalable integration with external sensors, actuators, and automation systems. Each port can be individually configured as either a digital input or digital output, allowing flexible adaptation to application requirements.

The module connects to the SMSEagle device via a USB interface, which also supplies power. An optional external power supply can be used for increased flexibility. All configuration, monitoring, and control is performed directly through the SMSEagle web-based GUI.

Features

32 configurable TTL-compatible (3.3 V) digital input/output ports
Per-channel configurable as input or output
USB interface with CDC (Communication Device Class) support
Powered via USB or optional external power supply
All I/O signals available on screw terminals
Full configuration and monitoring via SMSEagle web-GUI
Designed for SMSEagle NXS / MHD series devices

Technical Datasheet
